特點說明：MACHINE CHARACTERISTICS
●本機型針對通訊產業制造領域（同軸線纜加工）而設計，適用于不同規格同軸線和屏蔽線的加工。對碰刀切斷減少損耗，兩刀頭相互配合的設計使得所加工的產品具有高質量和高產量。線材的切斷，多層或多段剝皮可一次完成；可加裝劃皮裝置，脫皮長度可根據要求定制；接口可應用不同的外接設備。多年來，本公司一直以客戶之上，質量第一的原則，努力提高客戶滿意度。在通訊、航天行業獲得廣泛好評。
●This model is designed for the communications industry manufacturing （coaxial cable processing）,used for the processing of different specifications of coaxial and shielding cable. Reduce the loss of the cutting section. The left the two segment to cooperate with each other design makes the processed products have high yield and quality. Wire cutting ,stripping layers can be completed at a time. Can be fitted with a slitting blade device，slitting length can be customized upon request. Interfaces can be applied to different external devices. Over the years, Our Company has been in the customer first，quality first principle，strive to improve customer satisfaction. In the communications, aerospace industry has been praised by many customers.
機械規格：MACHINE SPECIFICATION

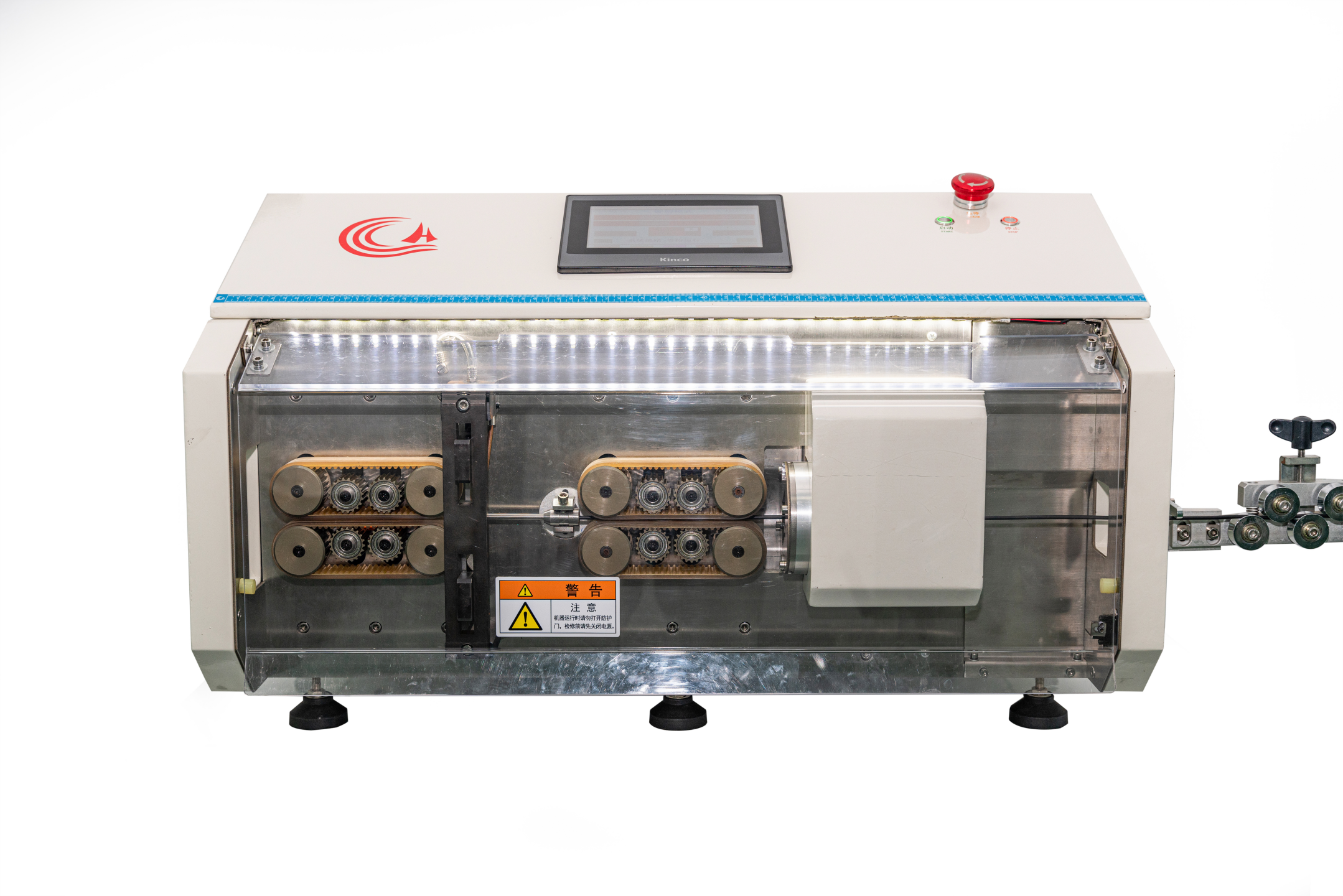

型號Modle | HC-9500 |
外形尺寸 Dimensions | 790x720x475(MM) |
重量 Weight | Approx 183.5KG |
最大加工尺寸 Max outer diameter | 9MM |
最小加工尺寸 Min outer diameter | 1.37MM |
最大加工長度 Max cutting length | 99999MM |
最小加工長度 Min cutting length | 60MM |
剝皮能力 Stripping length | 前端最大剝皮長度:60MM,后端最大剝皮長度：45MM,中間留膠皮不短至50MM Front end:max60mm Rear end stripping length:max45mm stay shortest insulation :50mm |
最小剝皮長度 Min stripping length | 0.1MM |
最大剝皮層數 Max stripping steps | 9 |
切割深度單位 Incise depth | 0.01MM |
產量 Production rate | 依作業線總長及作業程序不同，最少可達200PCS/小時 （長度100MM） Approx200pcs/h（length：100mm）depending on conductor and programming |
驅動方式 Drive supply | 伺服電機/滾珠絲桿驅動 伺服電機/滾珠絲桿驅動 motor/roll shot silk stem drive |
旋切刀片 Rotating blades | 2片，材質：進口高速鋼 2pieces material：imported Switzerland tungsten steel |
夾線裝置 Trapper | 自動調心，電機驅動，夾緊力度程序控制 Automatics self aligning，motor drive，the clamping process control |
存儲容量 Database capatity | 100種電纜加工數據 100 different conductors along with all processsing parameters. |
電源功率 Power | AC220V/50/60HZ280W |
工作環境 Working environment | 0—50度，干燥度適中，無振動的工作臺面 0—50°C moderate dry，non-shake |
